Molybdenum Screw

  • Molybdenum screw is widely used in the connection structure of vacuum furnaces and sintering furnaces because of its high hardness high melting point high temperature resistance and corrosion resistance in high temperature environments. Molybdenum s
  • Support hotline：
Recommended Products

  • Product Details

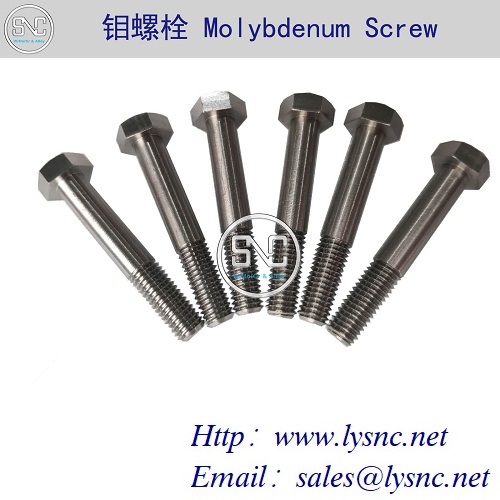

                                         Molybdenum Screw

    Molybdenum screw is widely used in the connection structure of vacuum furnaces and sintering furnaces because of its high hardness, high melting point, high temperature resistance and corrosion resistance in high temperature environments. Molybdenum screws are silver-gray metallic luster, and can produce GB screws, inch screws, American screws and DIN screws according to the specifications provided by users. Molybdenum screws have smooth, flat surfaces, no cracks, cracks, and impurities.

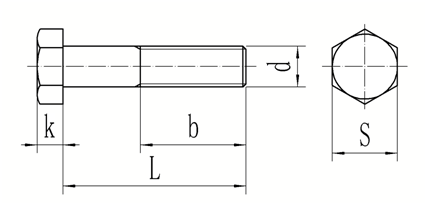

 Available molybdenum screw specifications    P is pitch
GB nut (coarse teeth) GB nut (fine teeth) Inch nut (coarse teeth) Inch nut (fine teeth)
M2*P0.4 M2*P0.25 3/32-48
M2.5*P0.45 M2.5*P0.35 1/8-40
M3* P0.5 M3* P0.35 5/32-32
M4* P0.7 M4* P0.5 3/16-24 3/16-32
M5* P0.8 M5* P0.5 1/4-20 1/4-26
M6* 1 M6* P0.75 5/16-18 5/16-22
M8* P1.25 M8* P1/0.75 3/8-16 3/8-20
M10* P1.5 M10* P1.25/1 7/16-14 7/16-18
M12* P1.75 M12* P1.5/1.25 1/2-12 1/2-16
M16*P2 M16* P1.5 5/8-11 5/8-14
M20*P2.5 M20* P2/1.5/1 3/4-10 3/4-12
M24*P3 M24* P2/1.5/1 7/8-9 7/8-11
M30*P3.5 M30* P2/1.5/1 1-8 1-10
M36*P4 M36* P3/2/1.5
1 -7		 1 -9
M42*P4.5 M42* P3/2/1.5
1 -7		 1 -9
M48*P5 M48* P3/2/1.5 1 -6 1 -8
M56*P5.5 M56* P4/3/2/1.5 1 -5 1 -7
M64*P6 M64* P4/3/2/1.5 2-4.5 2-7
M72*P6 M72* P4/3/2/1.5
M80*P6 M80* P4/3/2/1.5
M90*P6 M90* P4/3/2/1.5
M100*P6 M100* P4/3/2/1.5
M110*P6 M110* P4/3/2/1.5
M125*P6 M125* P4/3/2/1.5
M140*P6 M140*P4/3/2/1.5

      Molybdenum screw chemical composition
Molybdenum content Sum of other elements Other content of each element
≥99.95% ≤0.05% ≤0.01%

    We can also supply molybdenum-bismuth alloy bolts and TZM bolts according to the temperature of the product.
Please tell us the specifications, quantity and material of the bolts you need, we will quote you .
