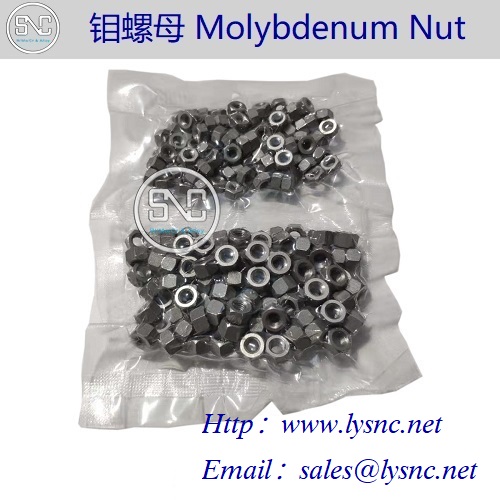

                     Molybdenum Nut

    Molybdenum nut is widely used in the connection structure of vacuum furnaces and sintering furnaces because of its high hardness, high melting point, high temperature resistance and corrosion resistance in high temperature environments. The molybdenum nut is silver-gray metallic luster. It can produce GB nut, inch nut, American nut and DIN nut according to the specifications provided by the user. Molybdenum nuts have smooth, flat surfaces, no cracks, cracks, and impurities.


             Available molybdenum nut size     P is pitch
GB nut (coarse teeth) GB nut (fine teeth) Inch nut (coarse teeth) Inch nut (fine teeth)
M2*P0.4 M2*P0.25 3/32-48
M2.5*P0.45 M2.5*P0.35 1/8-40
M3* P0.5 M3* P0.35 5/32-32
M4* P0.7 M4* P0.5 3/16-24 3/16-32
M5* P0.8 M5* P0.5 1/4-20 1/4-26
M6* 1 M6* P0.75 5/16-18 5/16-22
M8* P1.25 M8* P1/0.75 3/8-16 3/8-20
M10* P1.5 M10* P1.25/1 7/16-14 7/16-18
M12* P1.75 M12* P1.5/1.25 1/2-12 1/2-16
M16*P2 M16* P1.5 5/8-11 5/8-14
M20*P2.5 M20* P2/1.5/1 3/4-10 3/4-12
M24*P3 M24* P2/1.5/1 7/8-9 7/8-11
M30*P3.5 M30* P2/1.5/1 1-8 1-10
M36*P4 M36* P3/2/1.5
1 -7		 1 -9
M42*P4.5 M42* P3/2/1.5
1 -7		 1 -9
M48*P5 M48* P3/2/1.5 1 -6 1 -8
M56*P5.5 M56* P4/3/2/1.5 1 -5 1 -7
M64*P6 M64* P4/3/2/1.5 2-4.5 2-7
M72*P6 M72* P4/3/2/1.5
M80*P6 M80* P4/3/2/1.5
M90*P6 M90* P4/3/2/1.5
M100*P6 M100* P4/3/2/1.5
M110*P6 M110* P4/3/2/1.5
M125*P6 M125* P4/3/2/1.5
M140*P6 M140*P4/3/2/1.5

            Chemical composition of molybdenum nuts
Molybdenum content Sum of other elements Other content of each element
≥99.95% ≤0.05% ≤0.01%

    We can also supply molybdenum niobium alloy nuts and TZM nuts to customers based on the temperature at which they are used.
Please tell us the material, specification and quantity of the nut you need, we will quote you
