Molybdenum alloy
Current position：Home > Products > Molybdenum alloy >
prevnext

鉬鑭合金

  • 鉬鑭合金板（英文名稱：Tungsten Lanthanum Alloy） 鉬鑭合金是在鉬基體中以彌散質點存在的三氧化二鑭組成的合金。三氧化二鑭含量一般為0.5%~2.5%(質量分?jǐn)?shù))。鉬鑭合金在擁有純鉬特性的同
  • Support hotline：
Recommended Products

  • Product Details

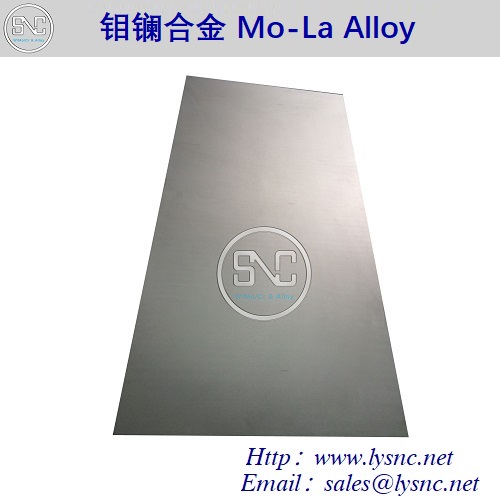

                      Molybdenum- Lanthanum Alloy

    Molybdenum-lathanum alloy is an alloy composed of antimony trioxide in a molybdenum matrix with dispersed particles. The content of antimony trioxide is generally from 0.5% to 2.5% (mass fraction). Molybdenum-niobium alloy has a higher recrystallization temperature than pure molybdenum and has a longer service life than pure molybdenum.
   Molybdenum-lathanum alloy sheets are widely used in various fields. Such as high temperature furnace heat shield and heating body, electric light source parts and electric vacuum devices, ion implantation parts and so on.

Available Molybdenum- Lanthanum Alloy plate specifications
Thickness (mm) Width (mm) Length (mm) surface condition
0.1±0.01 100±0.2 500±2.0 Alkali wash
0.2±0.02 400±1.0 2000±2.0 Alkali wash
0.3±0.02 500±1.0 2000±2.0 Alkali wash
0.4±0.04 500±1.0 2000±2.0 Alkali wash
0.5±0.04 550±1.0 2000±2.0 Alkali wash
0.8±0.08 600±1.0 2000±2.0 Alkali wash
1.0±0.06 600±1.0 2000±2.0 Alkali wash
1.5±0.08 600±1.0 2000±2.0 Alkali wash
2.0±0.10 600±1.0 2000±2.0 Alkali wash
3.0±0.10 600±1.0 2000±2.0 Alkali wash
3-10 560±1.0 2000±2.0 Polishing
10-20 400±1.0 800±2.0 Polishing
20-30 400±1.0 700±2.0 Polishing

 Available Molybdenum- Lanthanum Alloy rod specifications
Diameter mm Black leather molybdenum alloy rod/rod Polished Molybdenum-lathanum alloy rod
　 Diameter deviation % Roundness% Diameter deviation mm
0.8≤d≤3.0 ±2% 2 ±0.03
3.0<d≤6.5 ±2% 2 ±0.05
6.5<d≤13.5 ±2% 2 ±0.08
13.5<d≤25.0 ±2% 2 ±0.15
25.0<d≤50 ±2% 2 ±0.25
50.0<d≤100 ±2% 2 ±0.25

Molybdenum- Lanthanum Alloy chemical composition
La2O3 Sum of other elements Other content of each element Delivery status
0.5%~2.5% ≤0.05% ≤0.01% Rolling / caustic washing / polishing

Molybdenum- Lanthanum Alloy use field
1. Molybdenum  heat shield ;
2. Vacuum furnace support frame, carrier plate, plate heater ;
3. Physical vapor deposition molybdenum part .

Molybdenum- Lanthanum Alloy surface color classification
1. Sintered Molybdenum-lathanum alloy plate / rod surface Silver-gray metallic luster;
2. Black-skinned Molybdenum-lathanum alloy plate/rod has a layer of oxide on the surface, the surface is black;
3. Polished Molybdenum-lathanum alloy plate/rod is silver-gray metallic luster;
4. Alkali-washed Molybdenum-lathanum alloy plate The bar cleans off the oxide on the surface of the black skin molybdenum alloy plate and is silvery gray.

    Please tell us the quantity of Molybdenum-lathanum alloy you need, we will customize it for you.
